30KW off grid Solar Power system electricity storage system solar power generator

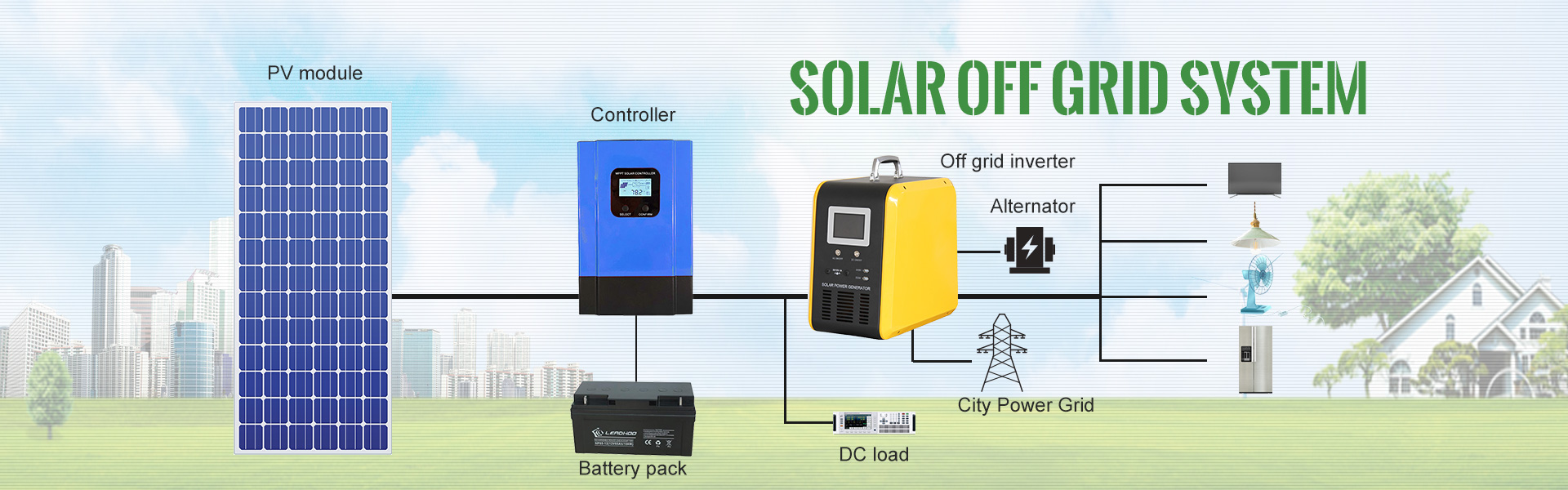

SYSTEM DIAGRAM
SPECIFICATION
Model (MLW) | 1KW | 2KW | 3KW | 5KW | 6KW | 10KW | |
Solar panel | Rated Power | 1KW | 2KW | 3KW | 5KW | 6KW | 10KW |
Power Production(kWh) | 4 | 8 | 13 | 22 | 26 | 43 | |
Roof Area (m2) | 6 | 12 | 16 | <p27 | 32 | 55 | |
Inverter | Output voltage | 110V/127V/220V/240V±5% | |||||
Frequency | 50Hz/60Hz±1% | ||||||
Waveform | (Pure sine wave) THD<2% | ||||||
Phase | Single phase/ Three Phase Optional | ||||||
efficiency | Max 92% | ||||||
Battery | Battery type | Deep cycle maintenance-free lead-acid battery( Customized and Desiged) | |||||
Cables | √ | √ | √ | √ | √ | √ | |
PV Bracket | √ | √ | √ | √ | √ | √ | |
Battery Rack | √ | √ | √ | √ | √ | √ | |
Accessaries and Tools | √ | √ | √ | √ | √ | √ |
REVIEW
Solar energy storage system, Integrated inverter, battery and solar charger
User friendly, easy installation and convenient mobile
Suitable for any kind of applications
FEATURES
Controllable panel with LCD.
DC start and automatic self-diagnostic function.
Designed to operate under harsh environment.
Low heat dissipation in long time operation.
Innovative MPPT technology, conversion efficiency up to 98%.
Clear readable display of charge/discharge, battery and error description.
Four stage charge way: MPPT, boost, equalization, float.
Full automatic electronic protect function.
Mobile solar system.
High efficiency design for energy storage.
